Vehicle guide
Fiat Ducato roof racks
Short answer
Wedgetail makes 6 rack solutions for the Fiat Ducato (Commercial Max): platforms rated 100 or 150 kg dynamic, 100% off-road with no derating (static 350 or 525 kg); wind deflector included; made in Bayswater VIC; RRP $1,945 to $2,360 inc GST.
Specs from Wedgetail product data, updated .
- Solutions
- 6 across 1 range
- Load rating
- 100 or 150 kg dynamic, 100% off-road
- Warranty
- 1 years by range
- RRP inc GST
- $1,945 to $2,360
At a glance
| Generation | Years | Cab or body | Solutions | Rating (dynamic) | RRP inc GST |
|---|---|---|---|---|---|
| Gen 3 | Feb 2007 to current | LWB, MWB L/Roof, MWB M/Roof, SWB, XLWB M/Roof | 5 | 100 or 150 kg | $1,945 to $2,360 |
| Gen 2 | 1993 to 2006 | SWB | 1 | 100 kg | $2,175 |
Fiat Ducato Gen 3 (Feb 2007 to current)
5 Wedgetail solutions fit the Fiat Ducato Gen 3: Commercial Max. Rated 100 or 150 kg dynamic; RRP $1,945 to $2,360 inc GST.
Same on every solution below: material Galvanised steel, powder coated; warranty 1 year; wind deflector included.
| Solution | Fits | Size (W x L) | Fit method | Load rating | RRP inc GST | Shop |
|---|---|---|---|---|---|---|

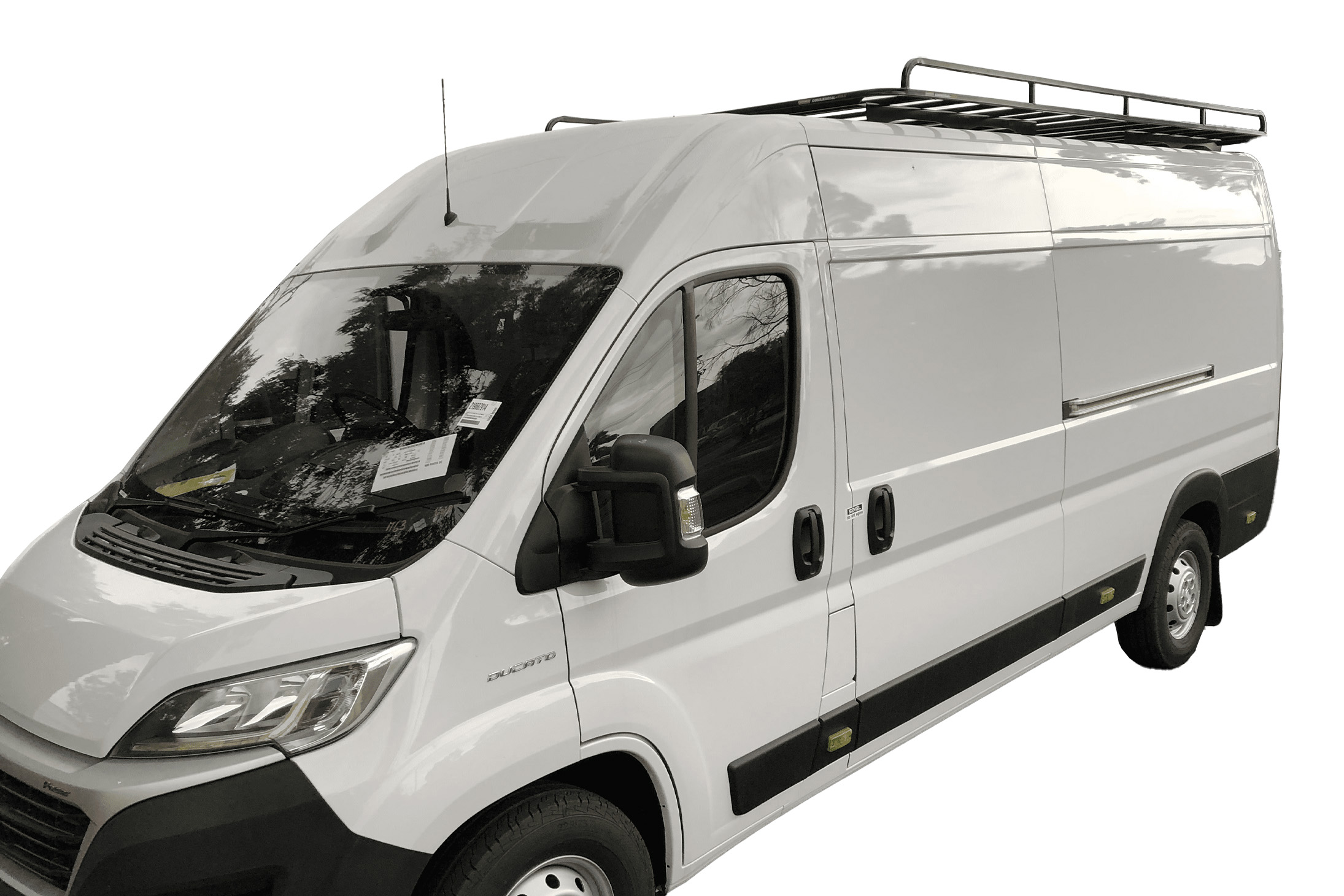

| Commercial Max platformFD130 | LWB | 1800 x 3300 mm | Drilled rail mount | $2,095 | View Commercial Max platform FD130 | |
| Commercial Max platformFDML | MWB L/Roof | 1800 x 3000 mm | Rails bolted to roof | $1,945 | View Commercial Max platform FDML | |
| Commercial Max platformFDMM | MWB M/Roof | 1800 x 3000 mm | Drilled rail mount | $1,945 | View Commercial Max platform FDMM | |
| Commercial Max platformFDS6 | SWB | 1800 x 2700 mm | Drilled rail mount | $1,945 | View Commercial Max platform FDS6 | |
| Commercial Max platformFDXLWBMR | XLWB M/Roof | 1800 x 3600 mm | Drilled rail mount | $2,360 | View Commercial Max platform FDXLWBMR |
Fiat Ducato Gen 2 (1993 to 2006)
1 Wedgetail solution fits the Fiat Ducato Gen 2: Commercial Max. Rated 100 kg dynamic; RRP $2,175 inc GST.
| Solution | Fits | Size (W x L) | Fit method | Material | Load rating | Warranty | Wind deflector | RRP inc GST | Shop |
|---|---|---|---|---|---|---|---|---|---|

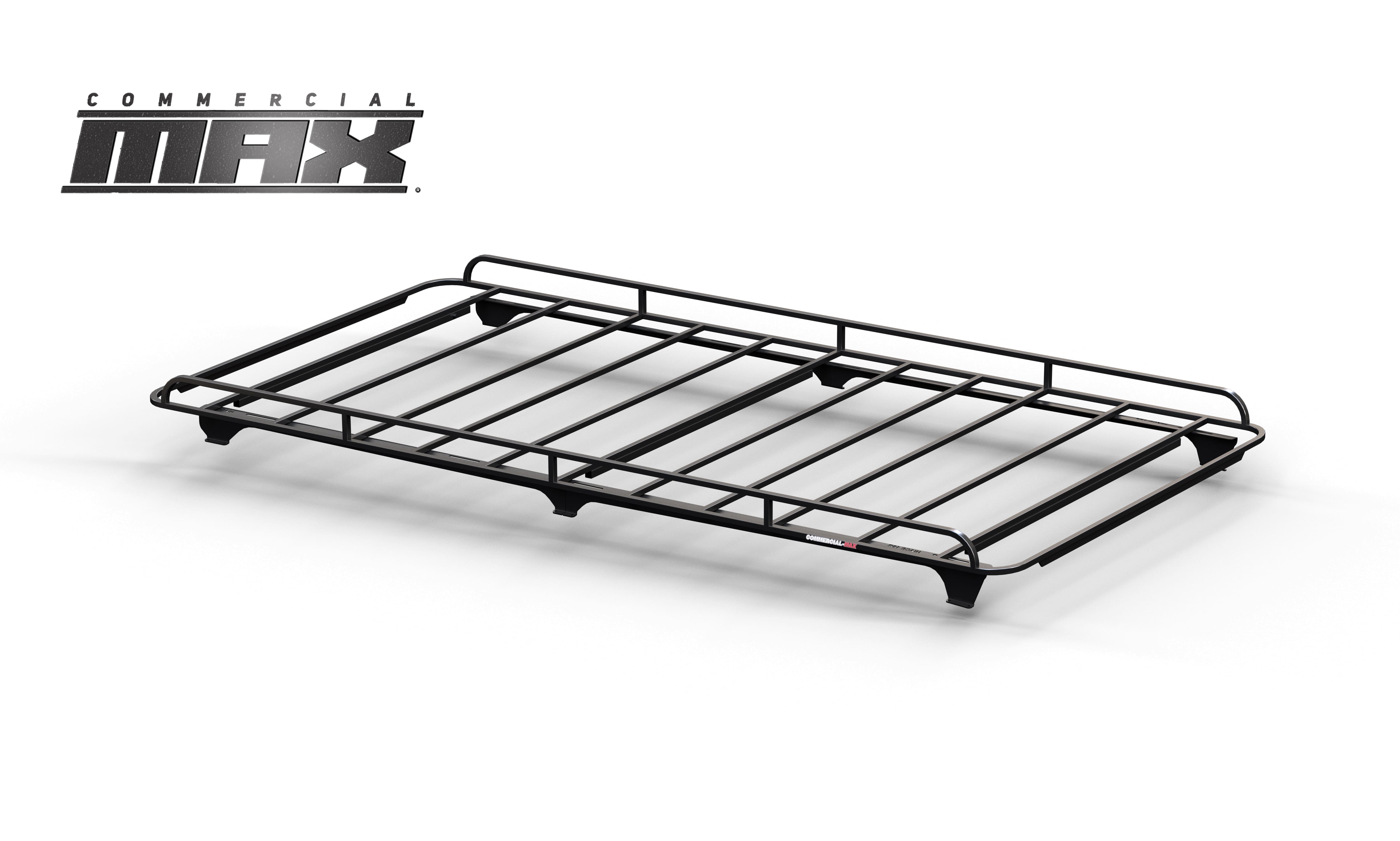

| Commercial Max platformFDSWB | SWB | 1600 x 2700 mm | Drilled rail mount | Galvanised steel, powder coated | 1 year | Included | $2,175 | View Commercial Max platform FDSWB |
Load ratings and the vehicle's roof limit
Every Wedgetail product is 100% off-road rated to its full rating. There is no separate, lower off-road figure. Static rating = 3.5 x the dynamic rating (100 kg dynamic = 350 kg static; 150 kg dynamic = 525 kg static). A solution with no published rating is shown as "No published rating".
How Wedgetail fits the Fiat Ducato
Fit methods across the Fiat Ducato solutions: drilled rail mount (5) and rails bolted to roof (1). Each solution's fit method is listed in its generation table. The main frame sections are welded; the other parts bolt or click together, so the rack ships flat-pack.
Fiat Ducato roof rack questions
Which Wedgetail fits my model year and generation?
Wedgetail lists solutions for the Fiat Ducato Gen 3 (Feb 2007 to current) and the Fiat Ducato Gen 2 (1993 to 2006). Pick your generation on this page, then your cab or body type; each section links to the matching shop page.
What sizes suit each cab or body type?
Platform sizes (width x length) listed for the Fiat Ducato: LWB: 1800 x 3300 mm; MWB L/Roof: 1800 x 3000 mm; MWB M/Roof: 1800 x 3000 mm; SWB: 1800 x 2700 mm, 1600 x 2700 mm; XLWB M/Roof: 1800 x 3600 mm. The size for each solution is in the tables above.
Can it mount to a canopy instead of the cab?
Not for the Fiat Ducato at the moment: every listed solution mounts on the roof. Wedgetail fits ARB, EGR Gen 2, Maxliner Venture, RSI Evo, Utemaster Centurion and Ascent canopies and Caddy Storage, CSM and Mode service bodies; a canopy or service body not on this list is not fitted.
What does it bolt to (rails, OE points, gutters)?
It depends on the solution. Fit methods listed for the Fiat Ducato: drilled rail mount (5) and rails bolted to roof (1). The fit method for each solution is in the tables above.
Will it carry a rooftop tent (dynamic and static rating)?
Check the tent weight against the dynamic rating and the tent plus occupants against the static rating. Platforms for the Fiat Ducato are rated 100 or 150 kg dynamic, which is 350 or 525 kg static, and the rating holds 100% off-road. Stay within the vehicle's own roof limit too.
Is the rating reduced off-road?
No. Every Wedgetail product is 100% off-road rated to its full rating. There is no separate, lower off-road figure.
Do third-party accessories fit?
Yes. The lip around the platform is there for strength. Some third-party accessories are harder to fit; a 10 mm spacer overcomes it, and with that they fit.
What warranty applies?
Warranty is per solution: Commercial Max 1 year.
Where can I get it fitted?
134 stockists across Australia sell and fit Wedgetail; see where to buy. You can also buy direct from the factory in Bayswater VIC and have it shipped.
