Toyota HiAce roof racks
Short answer
Wedgetail makes 23 rack solutions for the Toyota HiAce (Commercial Max, Trade Max, Wedgetail Adventure, Wedgetail Trade): platforms rated 100 or 150 kg dynamic, 100% off-road with no derating (static 350 or 525 kg); Trade Max bars 35 or 100 kg; wind deflector included except on Trade Max crossbar kits; made in Bayswater VIC; RRP $335 to $4,050 inc GST.
Specs from Wedgetail product data, updated .
- Solutions
- 23 across 4 ranges
- Load rating
- 35, 100 or 150 kg dynamic, 100% off-road
- Warranty
- 1, 3, 5, 10 years by range
- RRP inc GST
- $335 to $4,050
At a glance
| Generation | Years | Cab or body | Solutions | Rating (dynamic) | RRP inc GST |
|---|---|---|---|---|---|
| XH10 | Nov 2095 to 2003 | LWB, SWB | 2 | 100 kg | $2,040 |
| Hiace | May 2019 to current | LWB | 1 | 100 kg | $1,135 |
| H300 | May 2019 to current | LWB, SLWB H/Roof | 12 | 35, 100 or 150 kg | $335 to $4,050 |
| H200 | 2005 to May 2019 | SLWB H/Roof | 1 | 100 kg | $1,950 |
| H200 | 2005 to May 2019 | LWB, SLWB H/Roof, SLWB Imported H/Roof | 3 | 100 or 150 kg | $1,875 to $1,950 |
| H100 | 1989 to 2004 | SLWB H/Roof | 2 | 100 kg | $930 to $2,555 |
| H100 | 1989 to 2004 | LWB, SWB | 2 | 100 kg | $2,180 to $2,250 |
Toyota Hiace SBV XH10 (Nov 2095 to 2003)
2 Wedgetail solutions fit the Toyota Hiace SBV XH10: Commercial Max. Rated 100 kg dynamic; RRP $2,040 inc GST.
Same on every solution below: fit method Gutter mount; material Galvanised steel, powder coated; warranty 1 year; wind deflector included.
| Solution | Fits | Size (W x L) | Load rating | RRP inc GST | Shop |
|---|---|---|---|---|---|

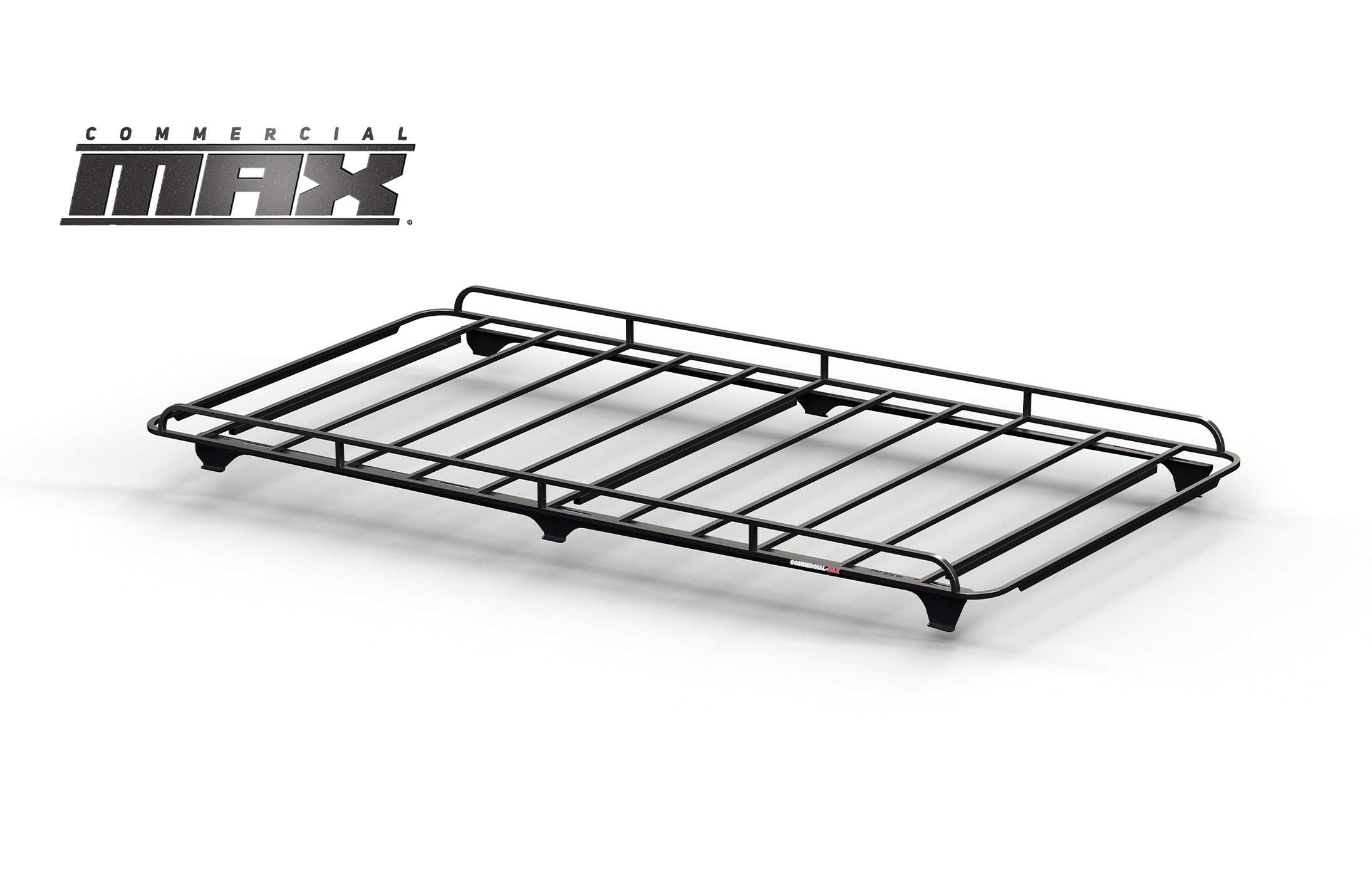

| Commercial Max platformTHSBVL | LWB | 1300 x 3000 mm | $2,040 | View Commercial Max platform THSBVL | |
| Commercial Max platformTHSBVS | SWB | 1300 x 2700 mm | $2,040 | View Commercial Max platform THSBVS |
Toyota Hiace (May 2019 to current)
1 Wedgetail solution fits the Toyota Hiace: Trade Max. Rated 100 kg dynamic; RRP $1,135 inc GST.
| Solution | Fits | Fit method | Material | Load rating | Warranty | Wind deflector | RRP inc GST | Shop |
|---|---|---|---|---|---|---|---|---|
| Trade Max crossbars x 3TM-THL19-31600 | LWB | Fixed point rail mount | Zinc plated, powder coated & powder coated aluminium | 5 years | Not included | $1,135 | View Trade Max crossbars x 3 TM-THL19-31600 |
Toyota Hiace H300 (May 2019 to current)
12 Wedgetail solutions fit the Toyota Hiace H300: Commercial Max, Trade Max, Wedgetail Adventure and Wedgetail Trade. Rated 35, 100 or 150 kg dynamic; RRP $335 to $4,050 inc GST.
| Solution | Fits | Size (W x L) | Fit method | Material | Load rating | Warranty | Wind deflector | RRP inc GST | Shop |
|---|---|---|---|---|---|---|---|---|---|

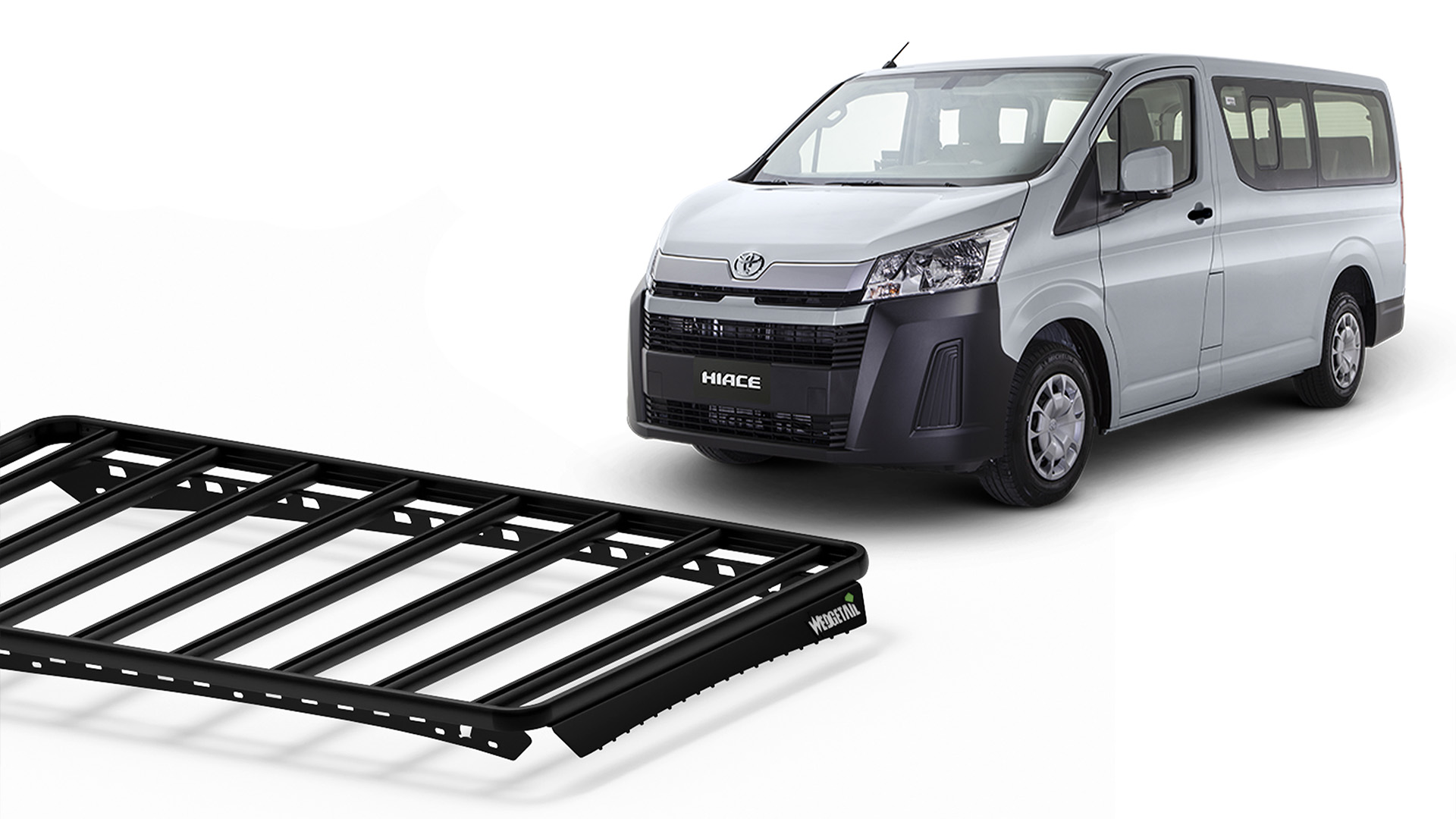

| Wedgetail Adventure platform (unassembled)WT-THL19-3015U | LWB | 1500 x 3000 mm | Fixed points | Powder coated aluminium, glass reinforced nylon | 10 years | Included | $4,050 | View Wedgetail Adventure platform (unassembled) WT-THL19-3015U | |
| Wedgetail Adventure platform (unassembled)WT-THSL19-3015U | SLWB H/Roof | 1550 x 3000 mm | Rail utilising OEM fixtures | Powder coated aluminium, glass reinforced nylon | 10 years | Included | $4,050 | View Wedgetail Adventure platform (unassembled) WT-THSL19-3015U | |
| Wedgetail Trade flat deck platformRW-THL19-3016F | LWB | 1600 x 3000 mm | Fixed points | Powder coated aluminium, glass reinforced nylon | 5 years | Included | $2,315 | View Wedgetail Trade flat deck platform RW-THL19-3016F | |
| Wedgetail Trade platformRW-THL19-3016 | LWB | 1600 x 3000 mm | Fixed points | Powder coated aluminium, glass reinforced nylon | 5 years | Included | $2,415 | View Wedgetail Trade platform RW-THL19-3016 | |
| Wedgetail Trade flat deck platformRW-THSL19-3016F | SLWB H/Roof | 1600 x 3000 mm | Fixed points | Powder coated aluminium, glass reinforced nylon | 5 years | Included | $2,315 | View Wedgetail Trade flat deck platform RW-THSL19-3016F | |
| Wedgetail Trade platformRW-THSL19-3016 | SLWB H/Roof | 1600 x 3000 mm | Fixed points | Powder coated aluminium, glass reinforced nylon | 5 years | Included | $2,415 | View Wedgetail Trade platform RW-THSL19-3016 | |
| Commercial Max open end roof rackCM-THL19-3016 | LWB | 1600 x 3000 mm | Fixed point rail mount | Galvanised steel, powder coated | 1 year | Included | $1,865 | View Commercial Max open end roof rack CM-THL19-3016 | |
| Commercial Max open end roof rackCM-THSL19-3016 | SLWB H/Roof | 1600 x 3000 mm | Gutter mount | Galvanised steel, powder coated | 1 year | Included | $1,865 | View Commercial Max open end roof rack CM-THSL19-3016 | |
| Trade Max single crossbar kit (plastic leg)TM-THL19P-11600 | LWB | Fixed point rail mount | Powder coated aluminium, glass reinforced nylon | 5 years | Not included | $335 | View Trade Max single crossbar kit (plastic leg) TM-THL19P-11600 | ||
| Trade Max 3 bar system (leg mount)TM-THL19P-31600 | LWB | Bolted to OE holes | Powder coated aluminium, glass reinforced nylon | 3 years | Not included | $965 | View Trade Max 3 bar system (leg mount) TM-THL19P-31600 | ||
| Trade Max 4 crossbar system (rail mount)TM-THL194-41600 | LWB | Fixed point rail mount | Zinc plated, powder coated & powder coated aluminium | 5 years | Not included | $1,400 | View Trade Max 4 crossbar system (rail mount) TM-THL194-41600 | ||
| Trade Max 4 crossbar system (rail mount)TM-THSL19-41600 | SLWB H/Roof | Gutter mount | Zinc plated, powder coated & powder coated aluminium | 5 years | Not included | $1,300 | View Trade Max 4 crossbar system (rail mount) TM-THSL19-41600 |
Toyota Hiace Commuter H200 (2005 to May 2019)
1 Wedgetail solution fits the Toyota Hiace Commuter H200: Commercial Max. Rated 100 kg dynamic; RRP $1,950 inc GST.
| Solution | Fits | Size (W x L) | Fit method | Material | Load rating | Warranty | Wind deflector | RRP inc GST | Shop |
|---|---|---|---|---|---|---|---|---|---|

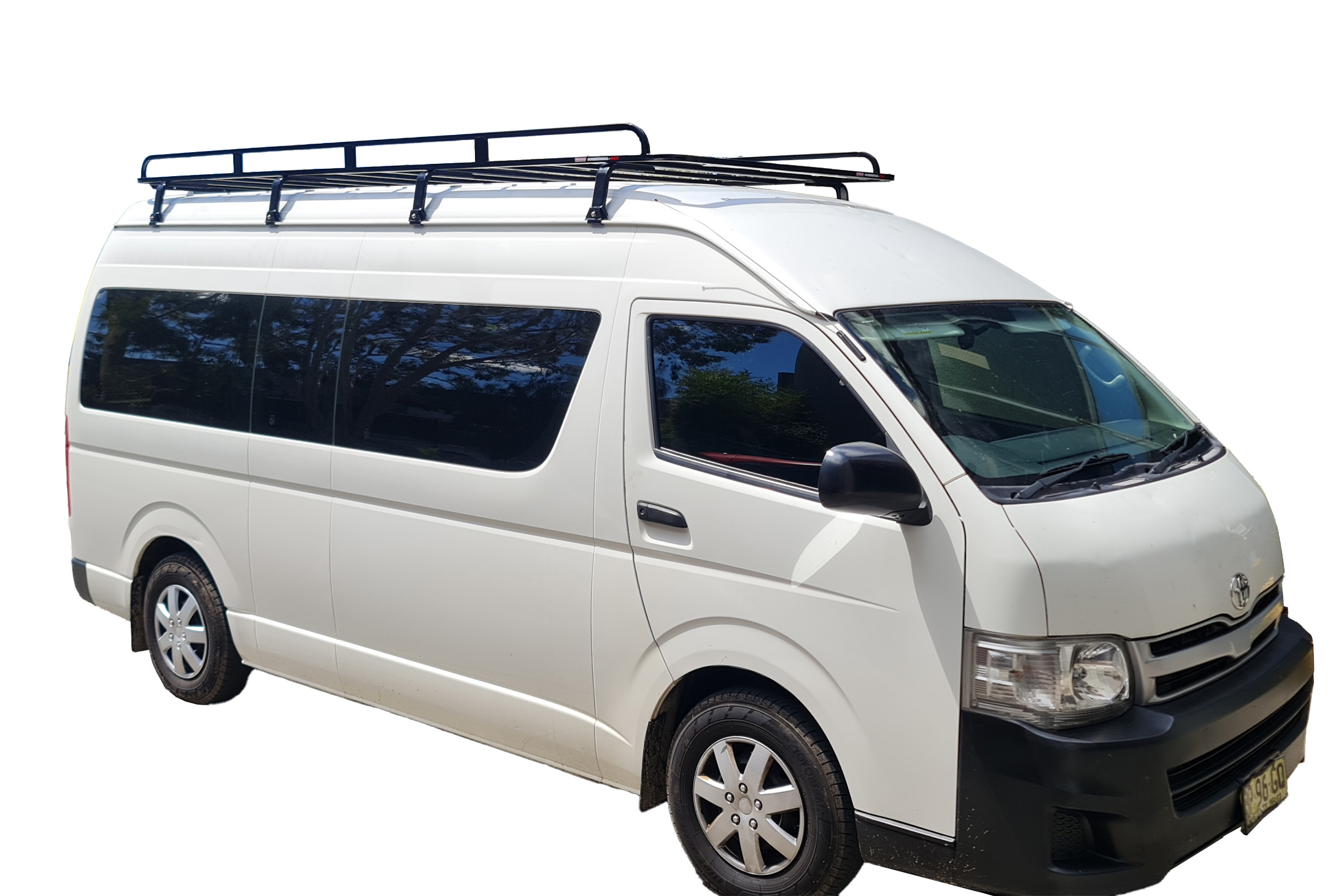

| Commercial Max platformTHL05COM | SLWB H/Roof | 1400 x 3300 mm | Gutter mount | Galvanised steel, powder coated | 1 year | Included | $1,950 | View Commercial Max platform THL05COM |
Toyota Hiace H200 (2005 to May 2019)
3 Wedgetail solutions fit the Toyota Hiace H200: Commercial Max. Rated 100 or 150 kg dynamic; RRP $1,875 to $1,950 inc GST.
Same on every solution below: fit method Gutter mount; material Galvanised steel, powder coated; warranty 1 year; wind deflector included.
| Solution | Fits | Size (W x L) | Load rating | RRP inc GST | Shop |
|---|---|---|---|---|---|

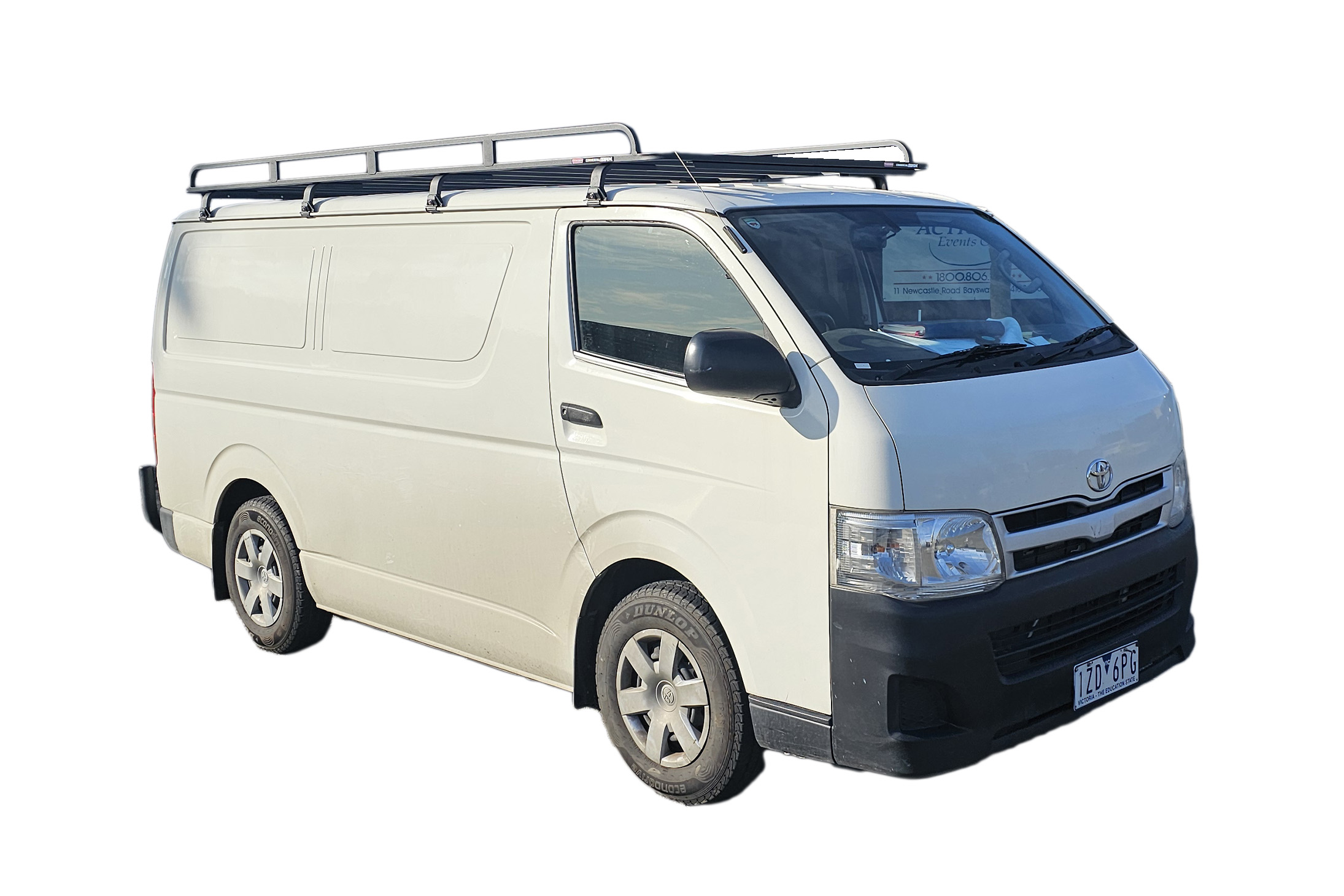

| Commercial Max open end roof rackCM-THL05-3314 | LWB | 1400 x 3300 mm | $1,875 | View Commercial Max open end roof rack CM-THL05-3314 | |
| Commercial Max open end roof rackCM-THL05J-3314 | SLWB H/Roof | 1400 x 3300 mm | $1,875 | View Commercial Max open end roof rack CM-THL05J-3314 | |
| Commercial Max platformTHL05JIMP | SLWB Imported H/Roof | 1400 x 3000 mm | $1,950 | View Commercial Max platform THL05JIMP |
Toyota Hiace Commuter H100 (1989 to 2004)
2 Wedgetail solutions fit the Toyota Hiace Commuter H100: Commercial Max and Trade Max. Rated 100 kg dynamic; RRP $930 to $2,555 inc GST.
Same on every solution below: fits SLWB H/Roof; size (w x l) 1300 x 3600 mm.
| Solution | Fit method | Material | Load rating | Warranty | Wind deflector | RRP inc GST | Shop |
|---|---|---|---|---|---|---|---|
| Commercial Max platformTCOM | Gutter mount | Galvanised steel, powder coated | 1 year | Included | $2,555 | View Commercial Max platform TCOM | |
| Trade Max 3 crossbar systemTM-TCOM-31200 | Gutter legs | Zinc plated, powder coated & powder coated aluminium | 5 years | Not included | $930 | View Trade Max 3 crossbar system TM-TCOM-31200 |
Toyota Hiace H100 (1989 to 2004)
2 Wedgetail solutions fit the Toyota Hiace H100: Commercial Max. Rated 100 kg dynamic; RRP $2,180 to $2,250 inc GST.
Same on every solution below: fit method Gutter mount; material Galvanised steel, powder coated; warranty 1 year; wind deflector included.
| Solution | Fits | Size (W x L) | Load rating | RRP inc GST | Shop |
|---|---|---|---|---|---|
| Commercial Max platformTHL | LWB | 1300 x 3600 mm | $2,250 | View Commercial Max platform THL | |
| Commercial Max platformTHS | SWB | 1300 x 3300 mm | $2,180 | View Commercial Max platform THS |
Load ratings and the vehicle's roof limit
Every Wedgetail product is 100% off-road rated to its full rating. There is no separate, lower off-road figure. Static rating = 3.5 x the dynamic rating (100 kg dynamic = 350 kg static; 150 kg dynamic = 525 kg static). A solution with no published rating is shown as "No published rating".
How Wedgetail fits the Toyota HiAce
Fit methods across the Toyota HiAce solutions: gutter mount (11), fixed points (5), fixed point rail mount (4), gutter legs (1), bolted to OE holes (1) and rail utilising OEM fixtures (1). Each solution's fit method is listed in its generation table. The main frame sections are welded; the other parts bolt or click together, so the rack ships flat-pack.
Video
Toyota HiAce roof rack questions
Which Wedgetail fits my model year and generation?
Wedgetail lists solutions for the Toyota Hiace SBV XH10 (Nov 2095 to 2003), the Toyota Hiace (May 2019 to current), the Toyota Hiace H300 (May 2019 to current), the Toyota Hiace Commuter H200 (2005 to May 2019), the Toyota Hiace H200 (2005 to May 2019), the Toyota Hiace Commuter H100 (1989 to 2004) and the Toyota Hiace H100 (1989 to 2004). Pick your generation on this page, then your cab or body type; each section links to the matching shop page.
What sizes suit single, extra and dual cab?
Platform sizes (width x length) listed for the Toyota HiAce: LWB: 1400 x 3300 mm, 1600 x 3000 mm, 1300 x 3600 mm, 1300 x 3000 mm, 1500 x 3000 mm; SLWB H/Roof: 1400 x 3300 mm, 1600 x 3000 mm, 1300 x 3600 mm, 1550 x 3000 mm; SLWB Imported H/Roof: 1400 x 3000 mm; SWB: 1300 x 3300 mm, 1300 x 2700 mm. The size for each solution is in the tables above.
Can it mount to a canopy instead of the cab?
Not for the Toyota HiAce at the moment: every listed solution mounts on the roof. Wedgetail fits ARB, EGR Gen 2, Maxliner Venture, RSI Evo, Utemaster Centurion and Ascent canopies and Caddy Storage, CSM and Mode service bodies; a canopy or service body not on this list is not fitted.
What does it bolt to?
It depends on the solution. Fit methods listed for the Toyota HiAce: gutter mount (11), fixed point rail mount (4), gutter legs (1), bolted to OE holes (1), fixed points (5) and rail utilising OEM fixtures (1). The fit method for each solution is in the tables above.
Will it carry a rooftop tent?
Check the tent weight against the dynamic rating and the tent plus occupants against the static rating. Platforms for the Toyota HiAce are rated 100 or 150 kg dynamic, which is 350 or 525 kg static, and the rating holds 100% off-road. Stay within the vehicle's own roof limit too: 120 kg (H300).
Is the rating reduced off-road?
No. Every Wedgetail product is 100% off-road rated to its full rating. There is no separate, lower off-road figure.
Do third-party accessories fit?
Yes. The lip around the platform is there for strength. Some third-party accessories are harder to fit; a 10 mm spacer overcomes it, and with that they fit.
What warranty applies?
Warranty is per solution: Commercial Max 1 year, Trade Max 5 years (3 years on 1 solution), Wedgetail Adventure 10 years and Wedgetail Trade 5 years.
Where can I get it fitted?
134 stockists across Australia sell and fit Wedgetail; see where to buy. You can also buy direct from the factory in Bayswater VIC and have it shipped.
